Zywall 110¶

Created: 2023-02-07 18:22:03 -0700

Modified: 2023-02-08 11:32:23 -0700

Internal IP	10.0.0.1
Model	Zywall 110
Serial Number	S142L31030304
Management URL
Login	Admin	Password is in Keeper

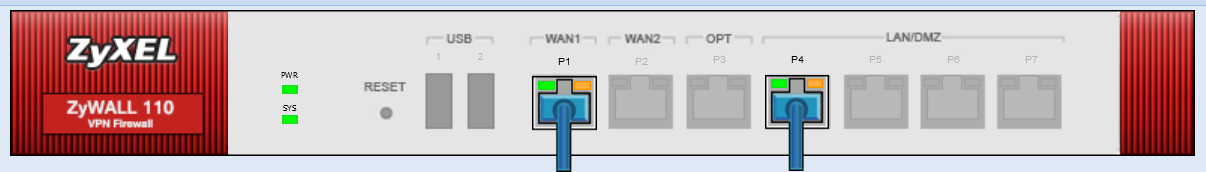

Infrastructure-Network-Firewall-Zywall-110-image1

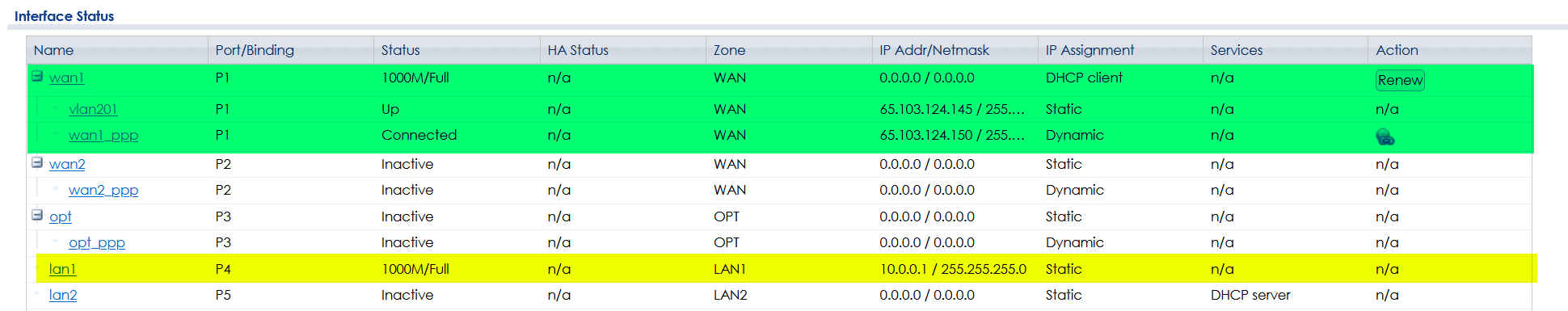

Infrastructure-Network-Firewall-Zywall-110-image2

WAN

Wan1	Internet Gateway	0.0.0.0	Does not have IP address, this is done through the PPP interface underneath
Wan1-ppp	Actual ISP connection	65.103.124.150	Authenticates with Century link with PPP and is given IP Address by Century Link DHCP - though static

LAN

Lan1	Internal Network	10.0.0.1	DHCP, DNS functions have been moved to STUDIOSRV2

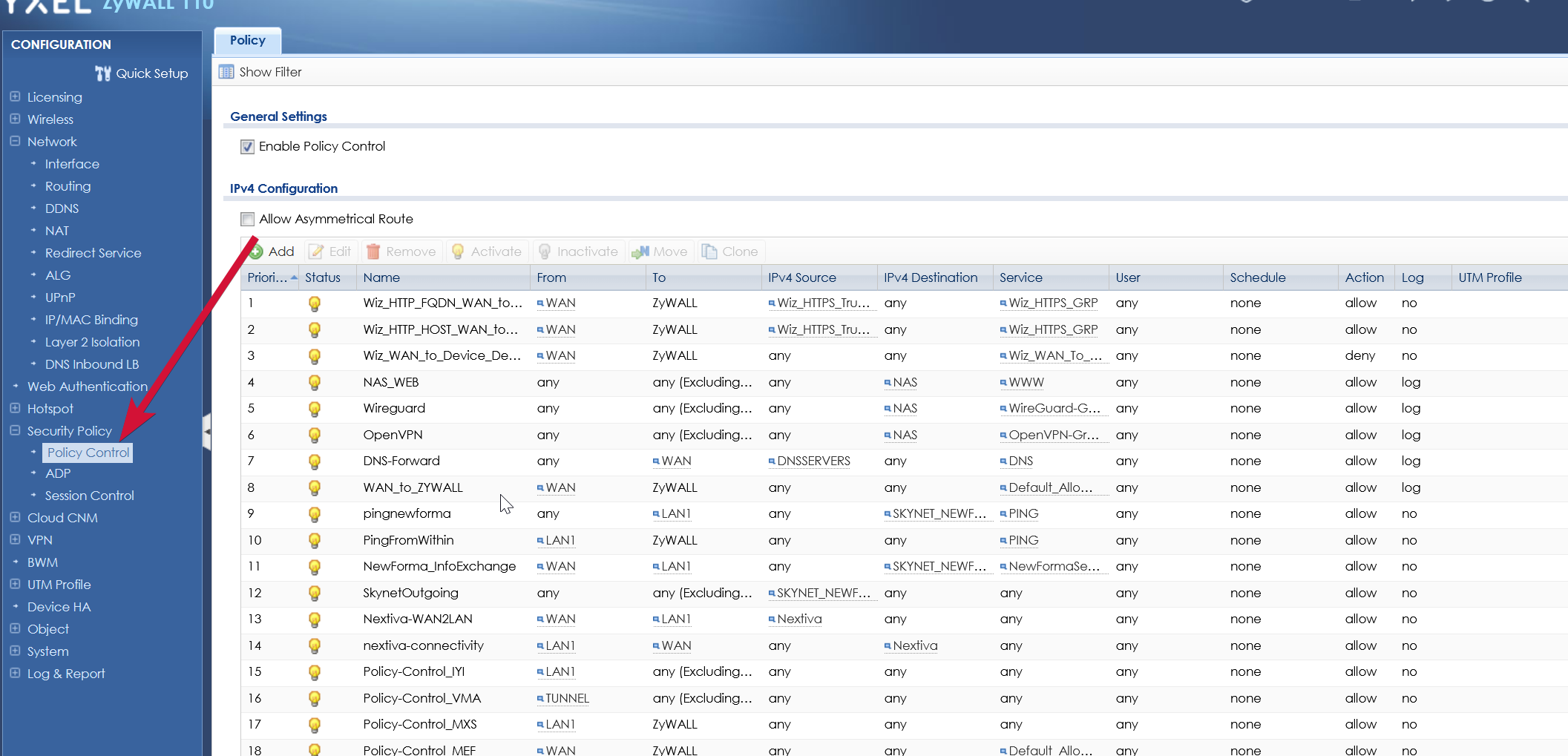

Firewall Rules

Firewall Rules should rarely need to be changed. But if you need to, you will need to be sure that the Machine/IP is defined in an object or as part of an object group and the services involved are also defined.

Infrastructure-Network-Firewall-Zywall-110-image3

Machine/GEO/IP Object Definitions

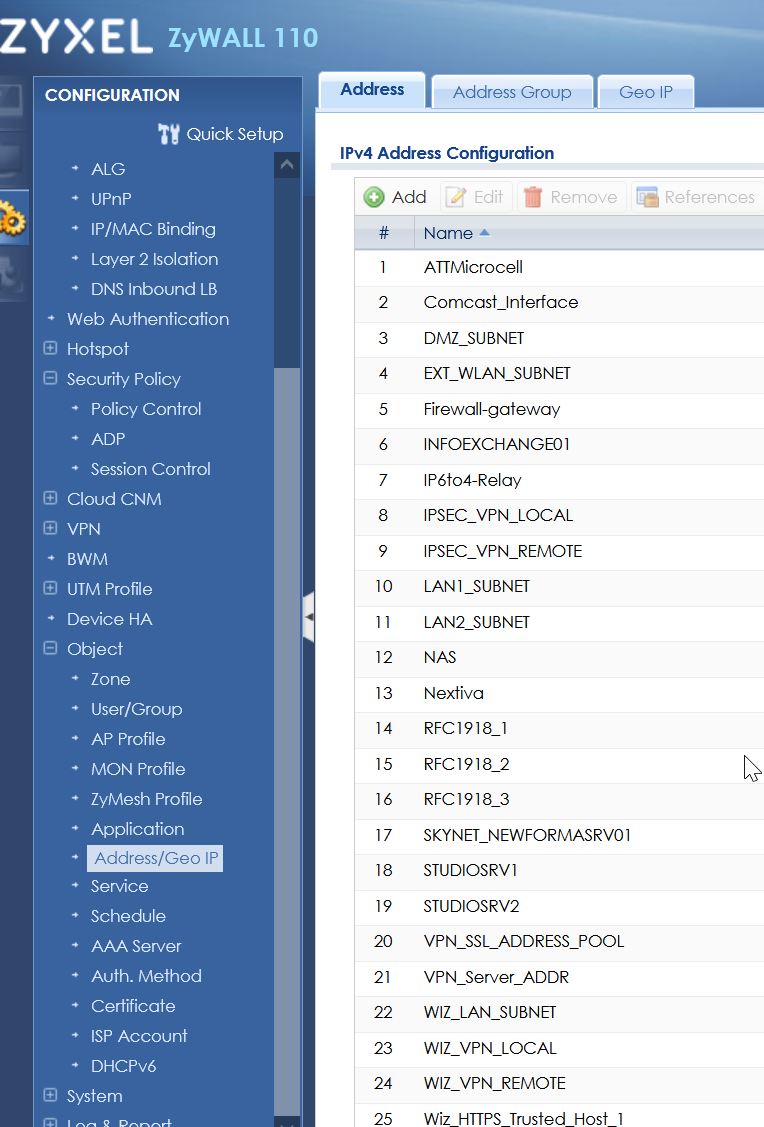

To Add/Change/Modify Machine locations, groups, etc, go to Object|Address/GEO IP

Infrastructure-Network-Firewall-Zywall-110-image4

To Add/Change/Modify Service Objects, go to OBJECT|Service

Infrastructure-Network-Firewall-Zywall-110-image5

Most are pre-defined for convenience, but many were added and grouped for specific applications like newforma, Wireguard, etc.
